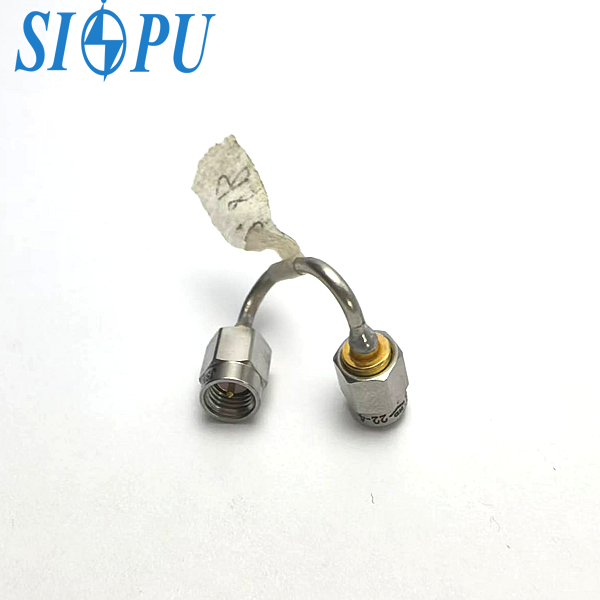

SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)

RF coaxial cables are critical components for high-efficiency, reliable transmission of electromagnetic signals. They feature two concentric conductors—a central inner conductor and an outer shield—designed to minimize signal loss and provide strong protection against external electromagnetic interference (EMI). Thanks to their excellent electrical and mechanical properties, these cables are widely used in local area networks (LANs), communication systems, and various RF applications.

Cable Classification

Depending on flexibility, RF coaxial cables are commonly categorized into:

Flexible cables

Semi-flexible cables

Semi-rigid (semi-steel) cables

Each cable typically consists of:

Inner conductor – Transmits the RF signal

Dielectric insulation layer – Electrically isolates the inner and outer conductors

Outer conductor (shield) – Prevents EMI and signal leakage

Application Areas

Military electronics, aerospace systems, communication terminals, RFID, mobile communications, and precision test instrumentation.

Product Features

This product is compatible with SFT-50-2-1 semi-rigid RF coaxial cable. It offers:

Low signal loss and excellent phase stability

Superior shielding effectiveness

Mechanical durability and shape retention for fixed routing

Standard cable length: 150 mm
